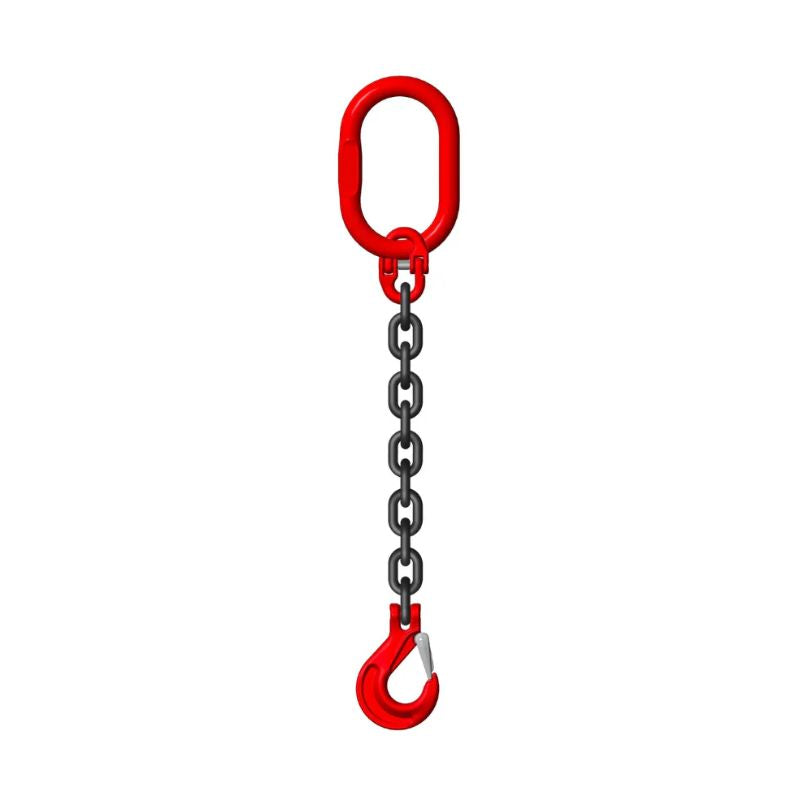

Single-leg
A direct lifting connection; define reach and terminal fitting.
Enquire about this product ↗PRODUCT RANGE / 03

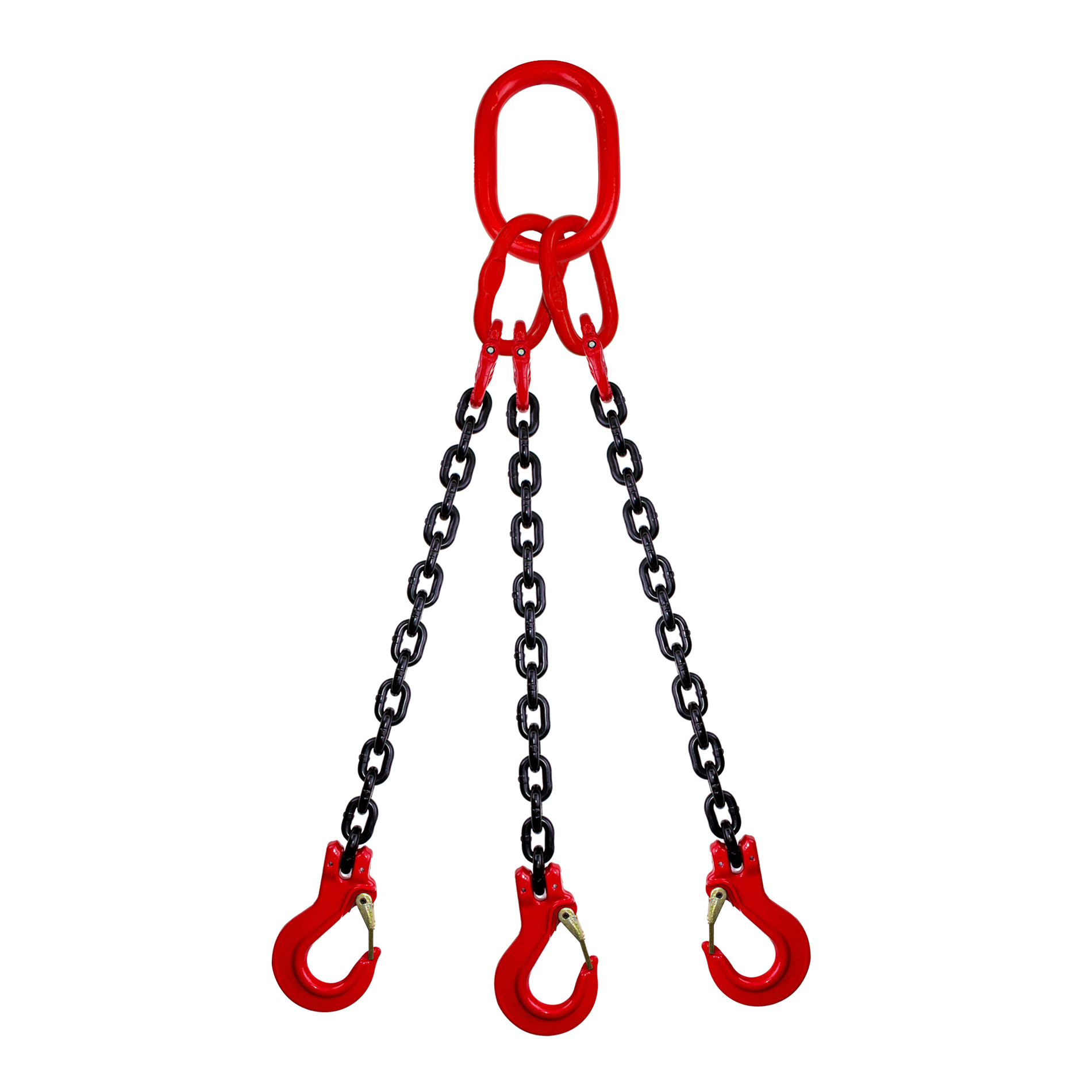

Chain Slings
Alloy chain assemblies with master links, connecting links and lifting hooks.
PRODUCT TYPES
Available product types.
Four-leg
Multiple load connections; rating depends on the approved geometry.
Enquire about this product ↗Selection & enquiry details
Choose fixed or adjustable reach, chain size, hook type and assembly WLL. Rate the complete sling for the working angle.
CATALOGUE REFERENCE
View catalogue page 4 ↗Reference specifications.
Reference only. Specifications are not linked to a specific brand. Actual dimensions, capacities and construction may differ. Confirm the supplied product certificate and manufacturer instructions before selection or use.
| Chain dia. mm | 1 leg vertical | 2 legs 0-45 deg. | 2 legs 45-60 deg. | 3/4 legs 0-45 deg. | 3/4 legs 45-60 deg. | 1 leg choked |
|---|---|---|---|---|---|---|
| 6 | 1.12 | 1.60 | 1.12 | 2.36 | 1.70 | 0.90 |
| 8 | 2.00 | 2.80 | 2.00 | 4.25 | 3.00 | 1.60 |
| 10 | 3.15 | 4.25 | 3.15 | 6.70 | 4.75 | 2.50 |
| 13 | 5.30 | 7.50 | 5.30 | 11.20 | 8.00 | 4.25 |
| 16 | 8.00 | 11.20 | 8.00 | 17.00 | 11.80 | 6.40 |
| 20 | 12.50 | 17.00 | 12.50 | 26.50 | 19.00 | 10.00 |
| 22 | 15.00 | 21.20 | 15.00 | 31.50 | 22.40 | 12.00 |
| 26 | 21.20 | 30.00 | 21.20 | 45.00 | 31.50 | 17.00 |
| 32 | 31.50 | 45.00 | 31.50 | 67.00 | 47.50 | 25.50 |
Examples assume Grade 80 chain and a 4:1 design factor. Angles are measured from vertical; the certified assembly WLL governs.
