Flat webbing slings
Eye-and-eye and endless forms provide a broad bearing surface. Specify width, length and the approved hitch.
Enquire about this product ↗PRODUCT RANGE / 04
Polyester Slings
Flat webbing, endless round and multi-leg textile lifting assemblies.
TEXTILE LIFTINGFlexible configurations.
Flexible configurations.
Clear product selection.
Flat webbing, endless round slings and multi-leg textile assemblies, selected for the load, hitch and working environment.
PRODUCT TYPES
Available product types.

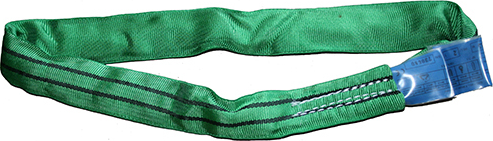

Endless round slings
Flexible polyester cores within a protective cover. Select using the identification tag and certified capacity.
Enquire about this product ↗

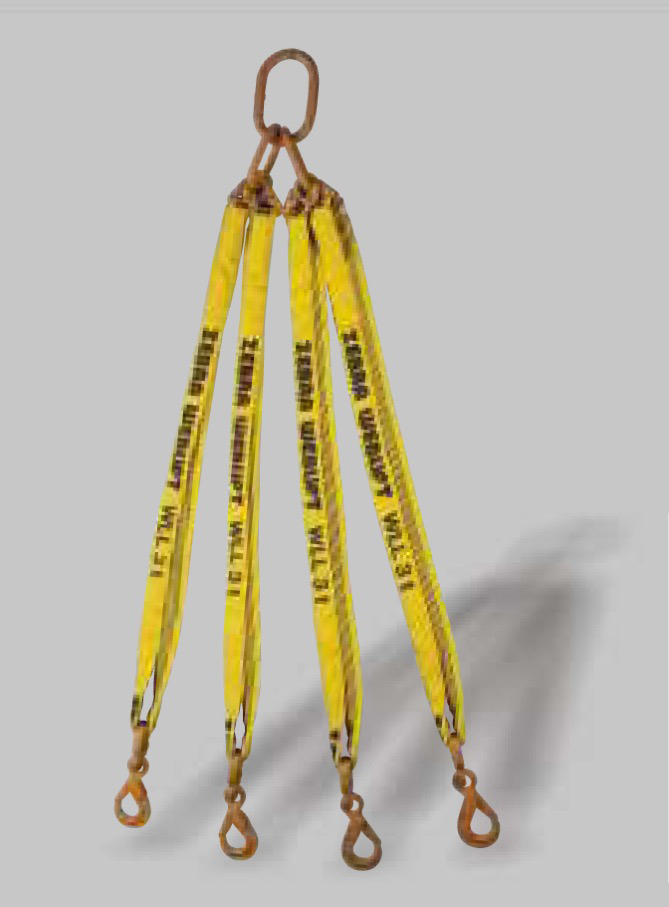

Multi-leg textile slings
Webbing legs connect through a master assembly and compatible fittings. Confirm angles and fitting compatibility.
Enquire about this product ↗Selection & enquiry details
Specify WLL, length, hitch and eye protection. Protect textiles from sharp edges; colour alone does not determine the rating.
CATALOGUE REFERENCE
View catalogue page 5 ↗Reference specifications.
Reference only. Specifications are not linked to a specific brand. Actual dimensions, capacities and construction may differ. Confirm the supplied product certificate and manufacturer instructions before selection or use.
| Reference vertical WLL | Choker example | Basket vertical legs | Basket legs at 45 deg. |
|---|---|---|---|
| 1.0 | 0.8 | 2.0 | 1.4 |
| 2.0 | 1.6 | 4.0 | 2.8 |
| 3.0 | 2.4 | 6.0 | 4.2 |
| 4.0 | 3.2 | 8.0 | 5.6 |
| 5.0 | 4.0 | 10.0 | 7.0 |
| 6.0 | 4.8 | 12.0 | 8.4 |
| 8.0 | 6.4 | 16.0 | 11.2 |
| 10.0 | 8.0 | 20.0 | 14.0 |
Examples assume polyester slings and a 7:1 design factor. Angles are measured from vertical; hitch and bearing geometry affect certified WLL.
