Mooring & towing lines
Choose material and construction for the vessel specification, required breaking load and operating conditions.
Enquire about this product ↗PRODUCT RANGE / 06
Mooring, Towing & Rope Assemblies
Synthetic lines supplied to suit vessel service, handling and end-connection requirements.
PRODUCT TYPES
Available product types.

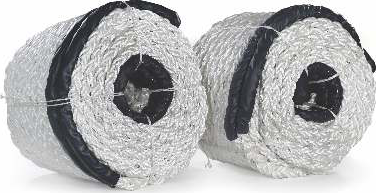

Spliced eyes & tails
Define finished length, eye dimensions, chafe protection and the connection arrangement.
Enquire about this product ↗

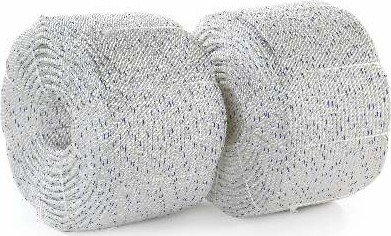

Handling & messenger ropes
Specify rope diameter, coil or cut length, identification and required end preparation.
Enquire about this product ↗Selection & enquiry details
Confirm MBL, construction, material, finished length, eye protection and applicable documentation.
CATALOGUE REFERENCE
View catalogue page 7 ↗Reference specifications.
Reference only. Specifications are not linked to a specific brand. Actual dimensions, capacities and construction may differ. Confirm the supplied product certificate and manufacturer instructions before selection or use.
| Dia. mm | PP | Polyester | Nylon / PA | HMPE |
|---|---|---|---|---|
| 24 | 94 | 118 | 138 | 480 |
| 28 | 125 | 158 | 185 | 635 |
| 32 | 160 | 204 | 238 | 820 |
| 40 | 245 | 310 | 365 | 1250 |
| 48 | 345 | 440 | 515 | 1780 |
| 56 | 460 | 590 | 690 | 2390 |
| 64 | 590 | 760 | 890 | 3080 |
| 72 | 740 | 950 | 1110 | 3850 |
| 80 | 900 | 1160 | 1360 | 4680 |
| 96 | 1260 | 1640 | 1920 | 6500 |
Breaking load is not a working load limit. Rope grade, construction, condition and terminations affect selection.
