Cargo nets
Cargo-handling nets. Specify dimensions, mesh, border rope, lifting eyes and capacity.
Enquire about this product ↗PRODUCT RANGE / 13
Marine & Deck Equipment
Anchors, stud-link chain, pilot ladders, cargo nets and deck securing systems.
PRODUCT TYPES
Available product types.
Ratchet lashings
Cargo-restraint webbing and ratchets. Specify lashing capacity, end fittings and restraint layout.
Enquire about this product ↗

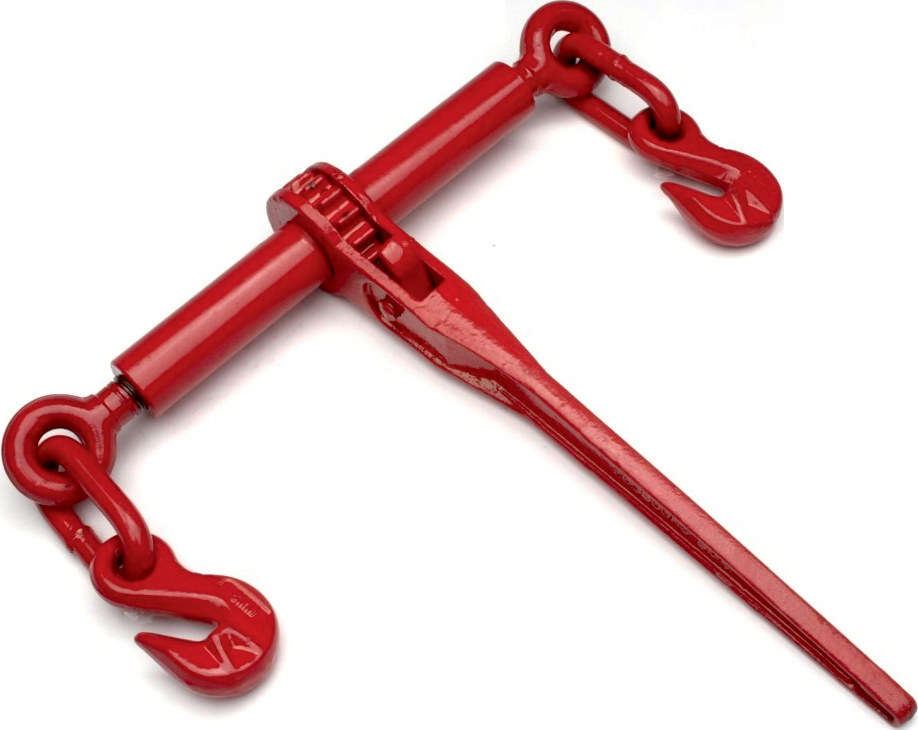

Chain binders
Binders for compatible chain lashings. Match chain size, lashing rating and the restraint system.
Enquire about this product ↗Selection & enquiry details
Anchor and chain reference data below; specify vessel requirements and class documentation.
CATALOGUE REFERENCE
View catalogue page 14 ↗Reference specifications.
Reference only. Specifications are not linked to a specific brand. Actual dimensions, capacities and construction may differ. Confirm the supplied product certificate and manufacturer instructions before selection or use.
| Anchor weight kg | Fluke length mm | Overall width mm | Chain dia. mm | Shackle dia. mm | U2 proof load kN | U2 break load kN |
|---|---|---|---|---|---|---|
| 300 | 920 | 780 | 16-19 | 16-19 | 107 | 150 |
| 500 | 1080 | 915 | 20.5-24 | 20.5-24 | 170 | 237 |
| 1000 | 1360 | 1150 | 26-30 | 26-30 | 264 | 368 |
| 1500 | 1560 | 1320 | 32-36 | 32-36 | 380 | 530 |
| 2000 | 1710 | 1450 | 38-42 | 38-42 | 510 | 710 |
| 3000 | 1960 | 1660 | 46-50 | 46-50 | 740 | 1030 |
| 5000 | 2320 | 1960 | 58-62 | 58-62 | 1140 | 1600 |
| 7000 | 2600 | 2200 | 68-73 | 68-73 | 1530 | 2140 |
| 10000 | 2920 | 2480 | 81-87 | 81-87 | 2110 | 2950 |
